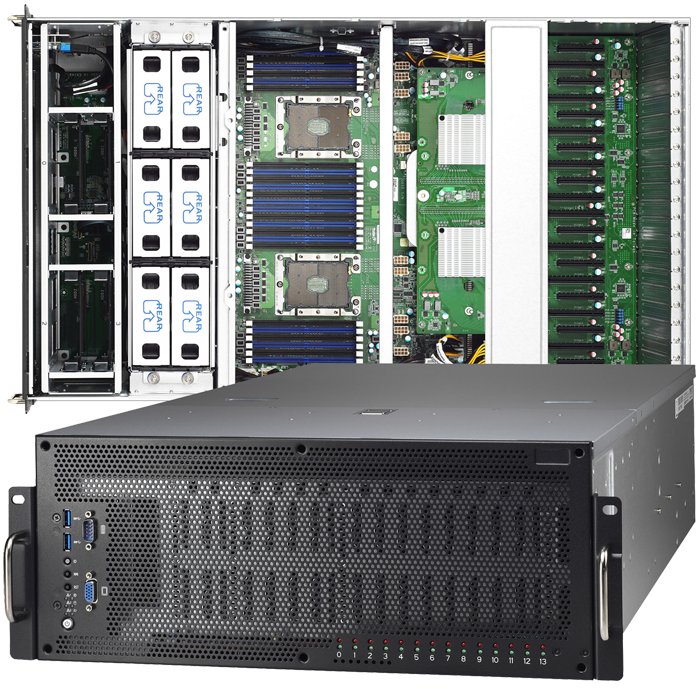

| System | | Form Factor | 4U Rackmount |
| | Chassis Model | FA77 |
| | Dimension (D x W x H) | 30.31" x 17.24" x 6.93" (770 x 438 x 176mm) |
| | Motherboard Name | S7119GMRE # |
| | Motherboard Notification | # The motherboard not sold separately |
| | Gross Weight | 43.5 kg (95.9 lbs) |
| | Net weight | 27.5 kg (60.6 lbs) |
| Front Panel | | Buttons | (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED |
| | LEDs | (1) HDD / (1) ID / (1) Warning / (3) LAN |
| | I/O Ports | (1) VGA port / (2) USB 3.0 ports / (1) COM Port |
| Internal Drive Bay | | Q'ty / Type | (4) 3.5"/2.5" Hot-Swap SSD/HDD |
| | HDD Backplane Support | SAS 12Gb/s /SATA 6Gb/s |
| | Supported HDD Interface | (4) SATA 6Gb/s |
| System Cooling Configuration | | FAN | (6) 12cm fans |
| Power Supply | | Type | CRPS |
| | Input Range | AC 100-127V/12A / AC 200-240V/9.48A |
| | Frequency | 50-60 Hz |
| | Output Watts | 3,000 Watts (100-127Vac input) / 4,800Watts (200-240Vac input) |
| | Efficiency | PFC / 80 plus Platinum |
| | Redundancy | 3+1 |
| Processor | | Q'ty / Socket Type | (2) LGA3647 |
| | Supported CPU Series | Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor |
| | Thermal Design Power (TDP) Wattage | Max up to 205W |
| | System Bus | Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support |
| Chipset | | PCH | Intel C621 |
| | Switch IC | (2) PLX PEX8796 |
| Memory | | Supported DIMM Qty | (12)+(12) DIMM slots |
| | DIMM Type / Speed | DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / DDR4 JEDEC NVDIMM 2666 / Intel Optane DC Persistent Memory Module (DCPMM) |
| | Capacity | Up to 1,536GB RDIMM/LRDIMM & 3,072GB RDIMM 3DS/LRDIMM 3DS
*Follow latest Intel DDR4 Memory POR |
| | Memory channel | 6 Channels per CPU |
| | Memory voltage | 1.2V |
| | Notification | DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact YJMOD Technical Support for more detail. |
| Expansion Slots | | PCI-E | (1) PCI-E Gen3 x16 slot (FH / FL / SW) / (10) PCI-E Gen3 x16 slots (FH / FL / DW) |
| | Pre-install YJMOD Riser Card
(PCI-E Gen3) | (1) M2217-L16-IO # riser card for (1) storage mezz. slot |
| | Pre-install YJMOD Mezz. Card
(PCI-E Gen3) | (1) M7108-X550-2T LAN mezz. card w/ (2) 10GbE ports |
| | Others | (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B) / (1) PCI-E Gen3 x16 storage mezz. slot |
| | Physical Dimension
Abbreviation | FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm) |
| | Notification | # The item not sold separately |
| LAN | | Q'ty / Port | (2) 10GbE ports, (1) GbE port dedicated for IPMI |
| | Controller | Intel X550-BT2 |
| | PHY | Realtek RTL8211E |
| Storage | SATA | Connector | (2) Mini-SAS HD (8 ports) |
| Controller | Intel C621 |
| Speed | 6Gb/s |
| RAID | RAID 0/1/10/5 (Intel RSTe) |
| sSATA | Connector | (2) SATA-III / (1) Mini-SAS HD (4 ports) |
| Controller | Intel C621 |
| Speed | 6Gb/s |
| RAID | RAID 0/1/10/5 (Intel RSTe) |
| Graphic | | Connector type | D-Sub 15-pin |
| | Resolution | Up to 1920x1200 |
| | Chipset | Aspeed AST2500 |
| I/O Ports | | USB | (2) USB3.0 ports (@ rear) / (2) USB3.0 ports (@ front) |
| | COM | (1) DB-9 COM port (@ front) |
| | VGA | (1) D-Sub 15-pin port (@ front) |
| | RJ-45 | (2) 10GbE ports, (1) dedicated GbE for IPMI |
| TPM (Optional) | | TPM Support | Please refer to our TPM supported list. |
| System Monitoring | | Chipset | Aspeed AST2500 |
| | Temperature | Monitors temperature for CPU & memory & system environment |
| | Voltage | Monitors voltage for CPU, memory, chipset & power supply |
| | LED | Over temperature warning indicator / Fan & PSU fail LED indicator |
| | Others | Watchdog timer support |
| Server Management | | Onboard Chipset | Onboard Aspeed AST2500 |
| | AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| | AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS | | Brand / ROM size | AMI / 32MB |
| | Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1 |
| Operating System | | OS supported list | Please refer to our AVL support lists. |
| Regulation | | FCC (SDoC) | Class A |
| | CE (DoC) | Class A |
| | CB/LVD | Yes |
| | RCM | Class A |
| | VCCI | Class A |
| Operating Environment | | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) |
| | Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) |
| | In/Non-operating Humidity | 90%, non-condensing at 35° C |
| | Note |
|
| RoHS | | RoHS 6/6 Compliant | Yes |
| Package Contains | | Barebone | (1)SADSR3000RQ10-B214L10/NV Tesla-aware FW Barebone |
| | Manual | (1) Quick Installation Guide |
| | Installation CD | (1) Device Driver CD |
